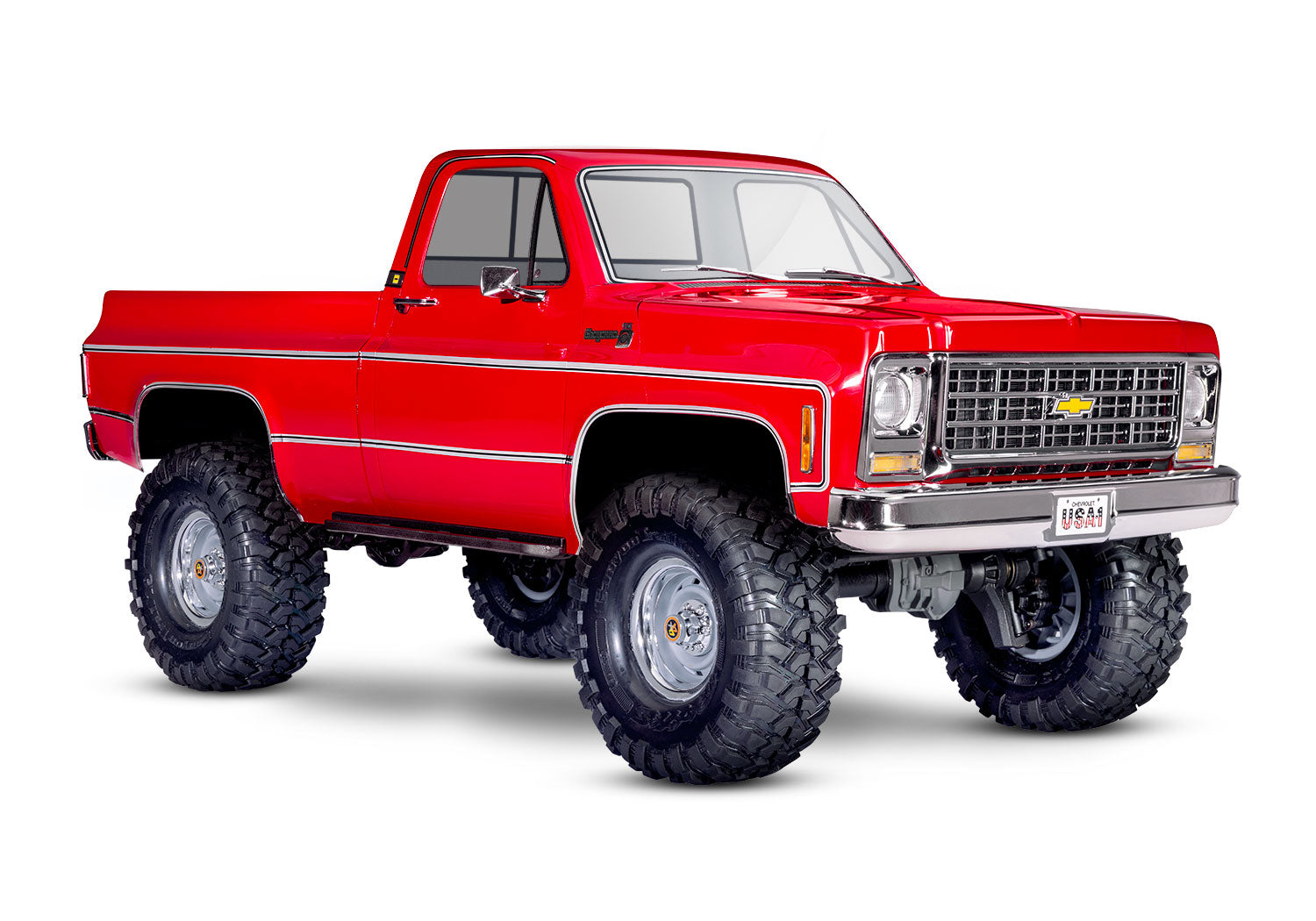

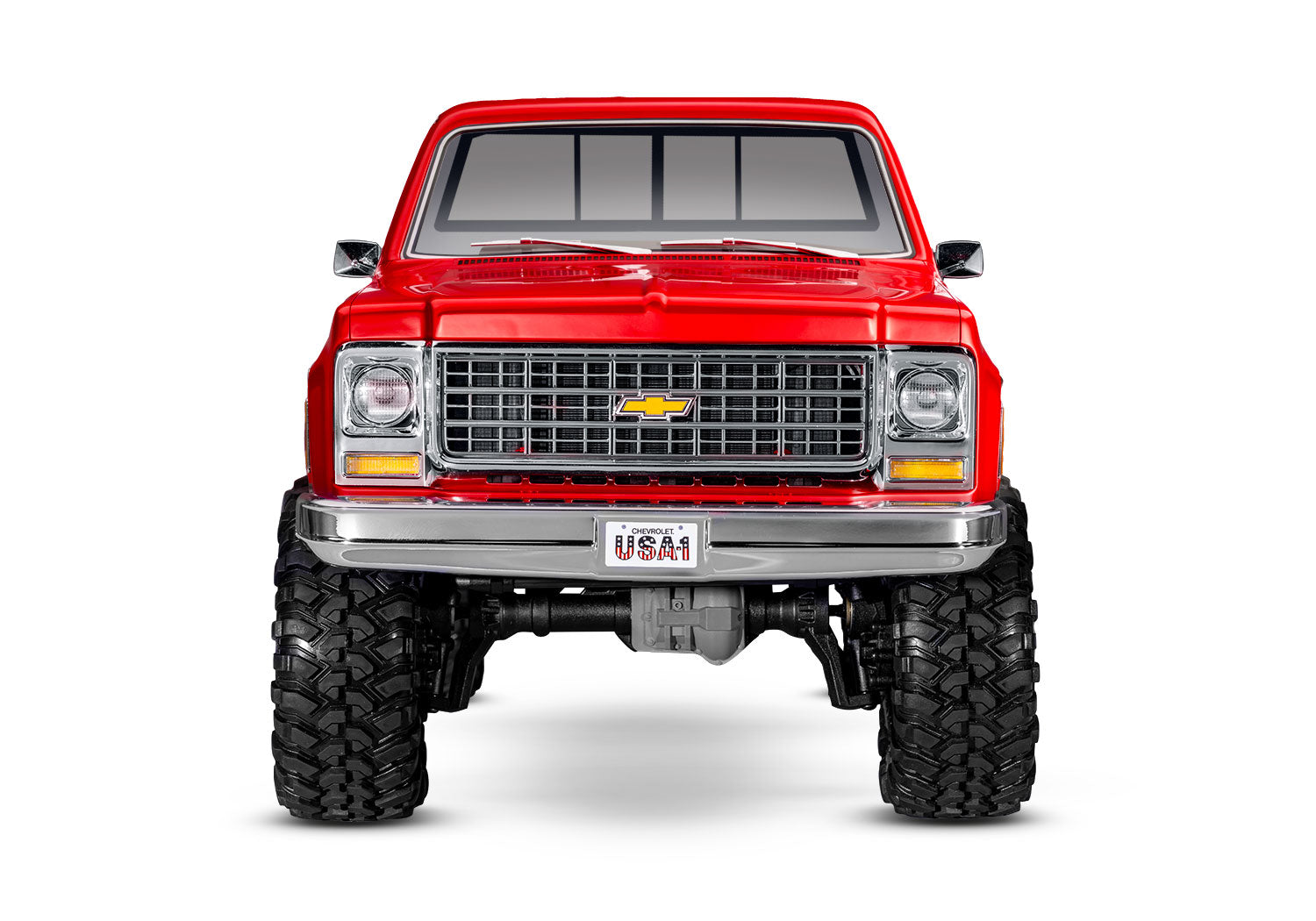

TRX-4 Chevrolet K10, 92154-4, Available Now For Pre-Order

1/19

$449.99 USD

Quick Highlights

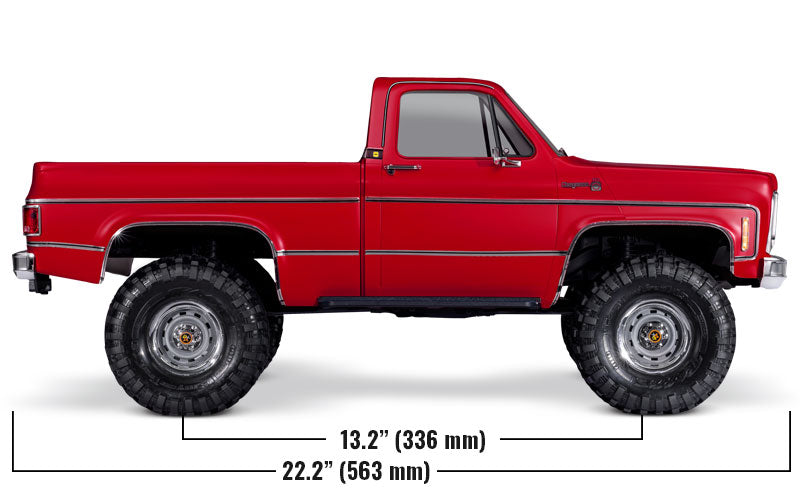

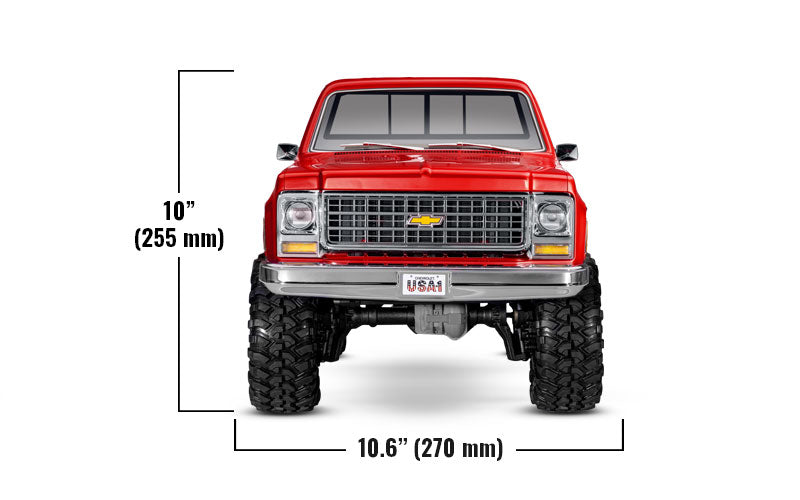

Wheelbase:	13.23 inches (336 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Spool (no differentials)
Gear Pitch:	32 pitch
Steering Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

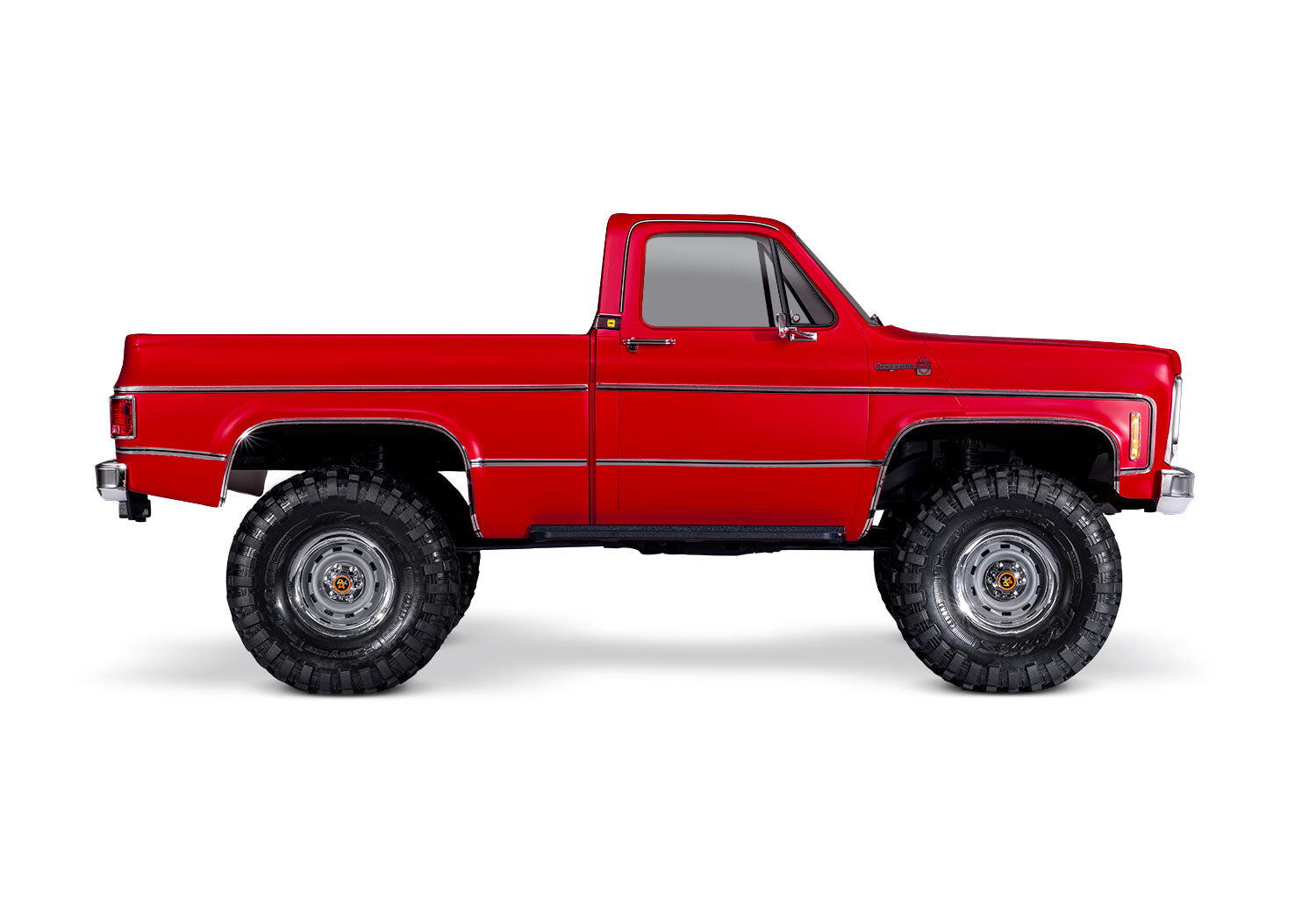

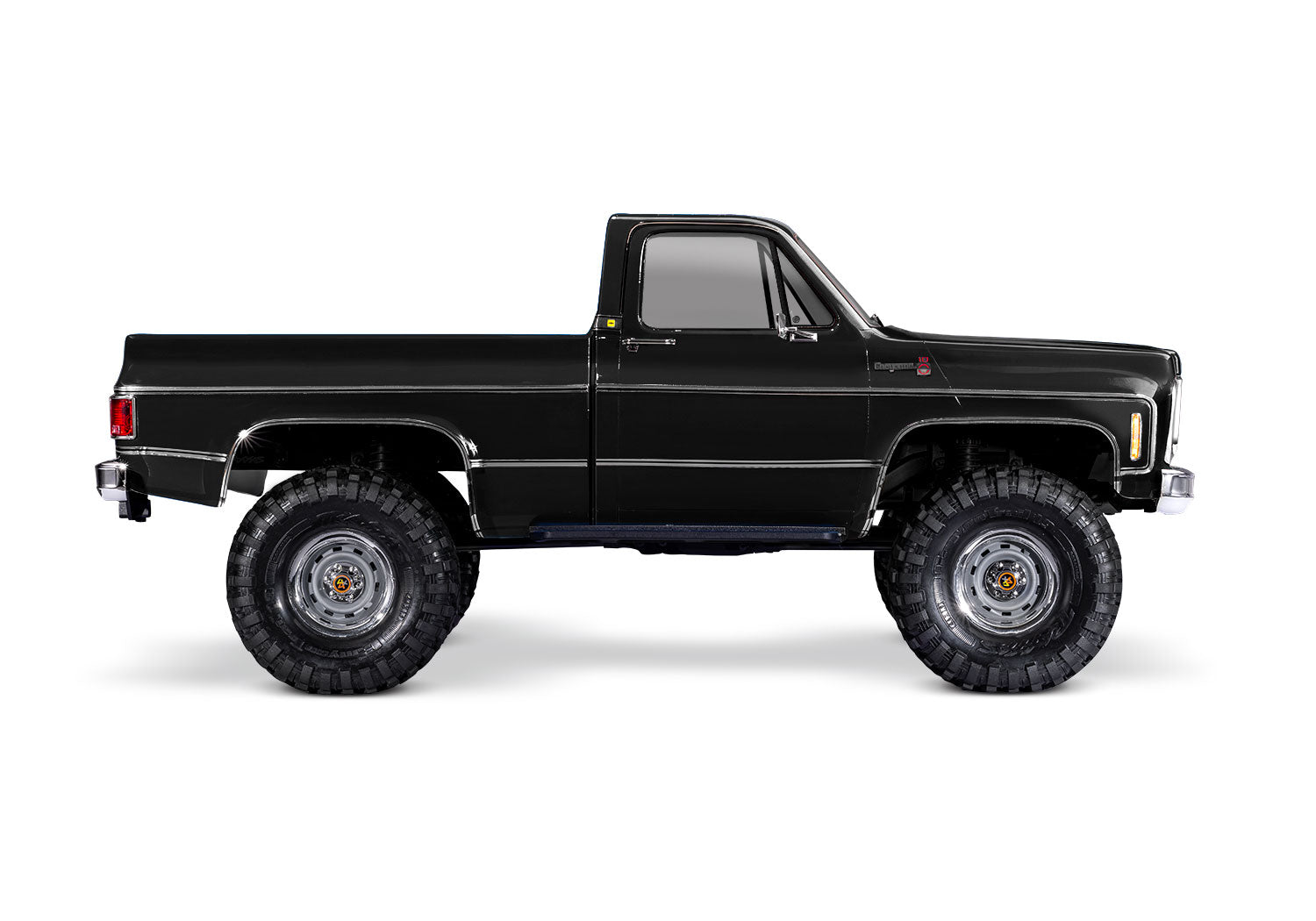

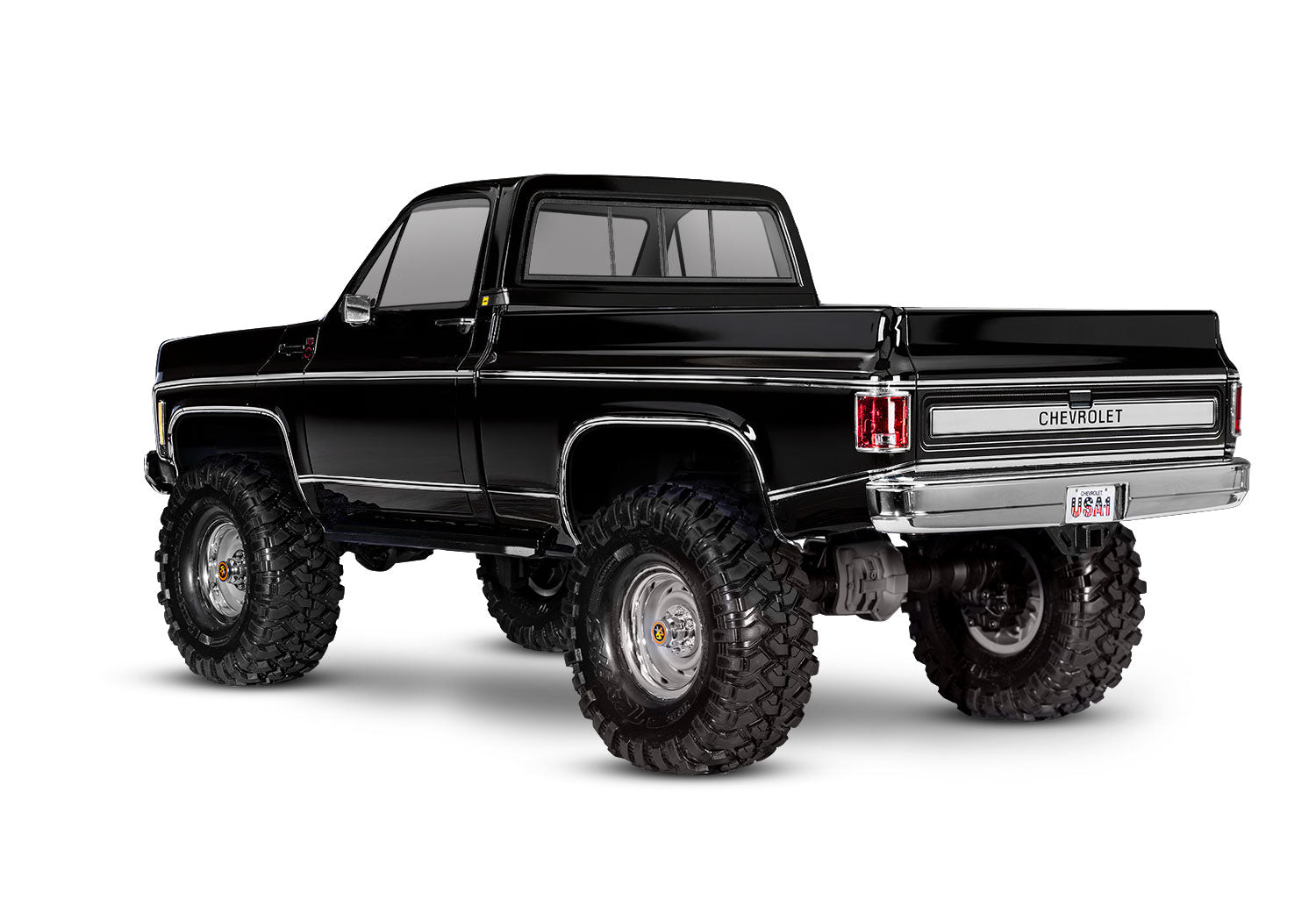

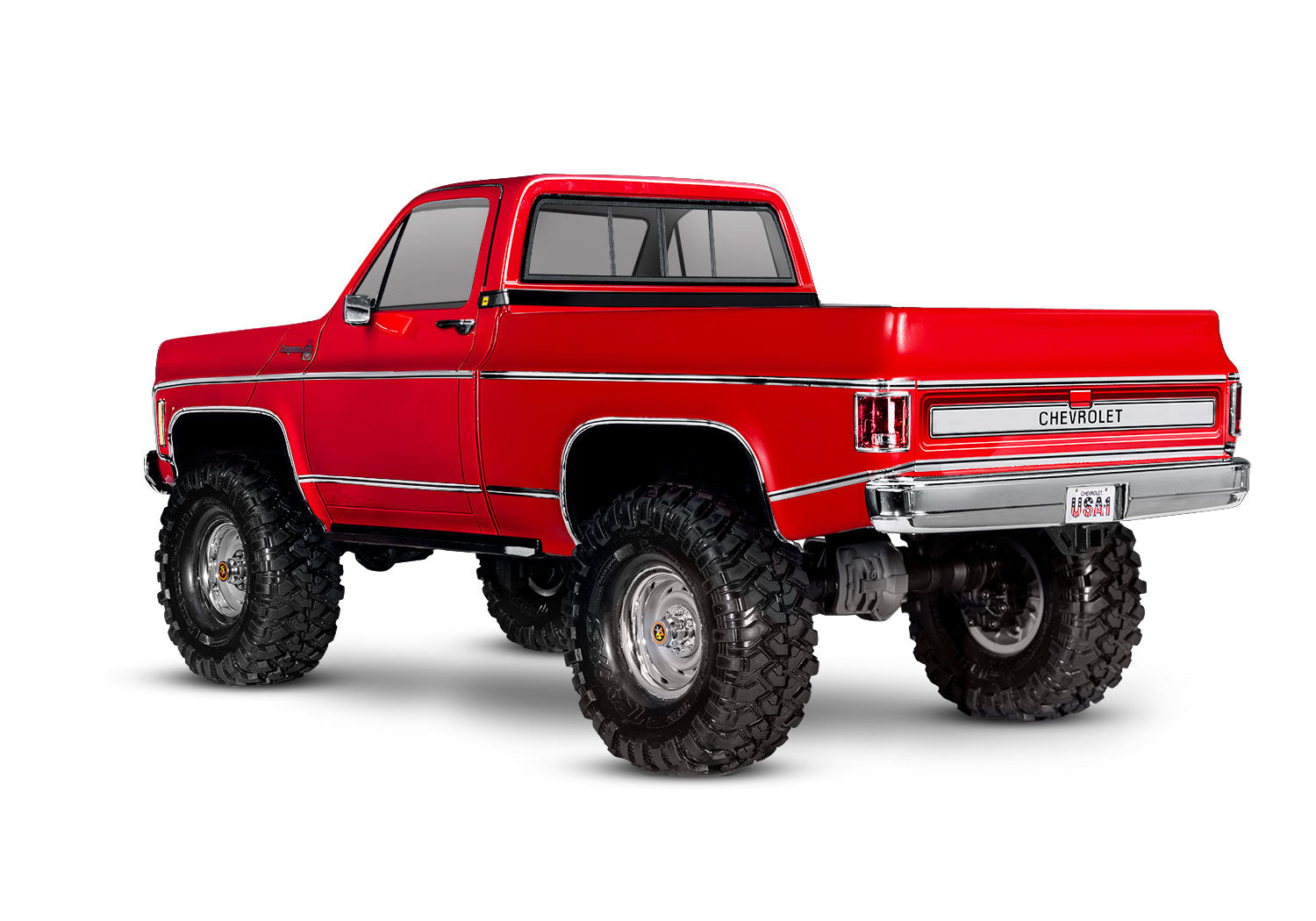

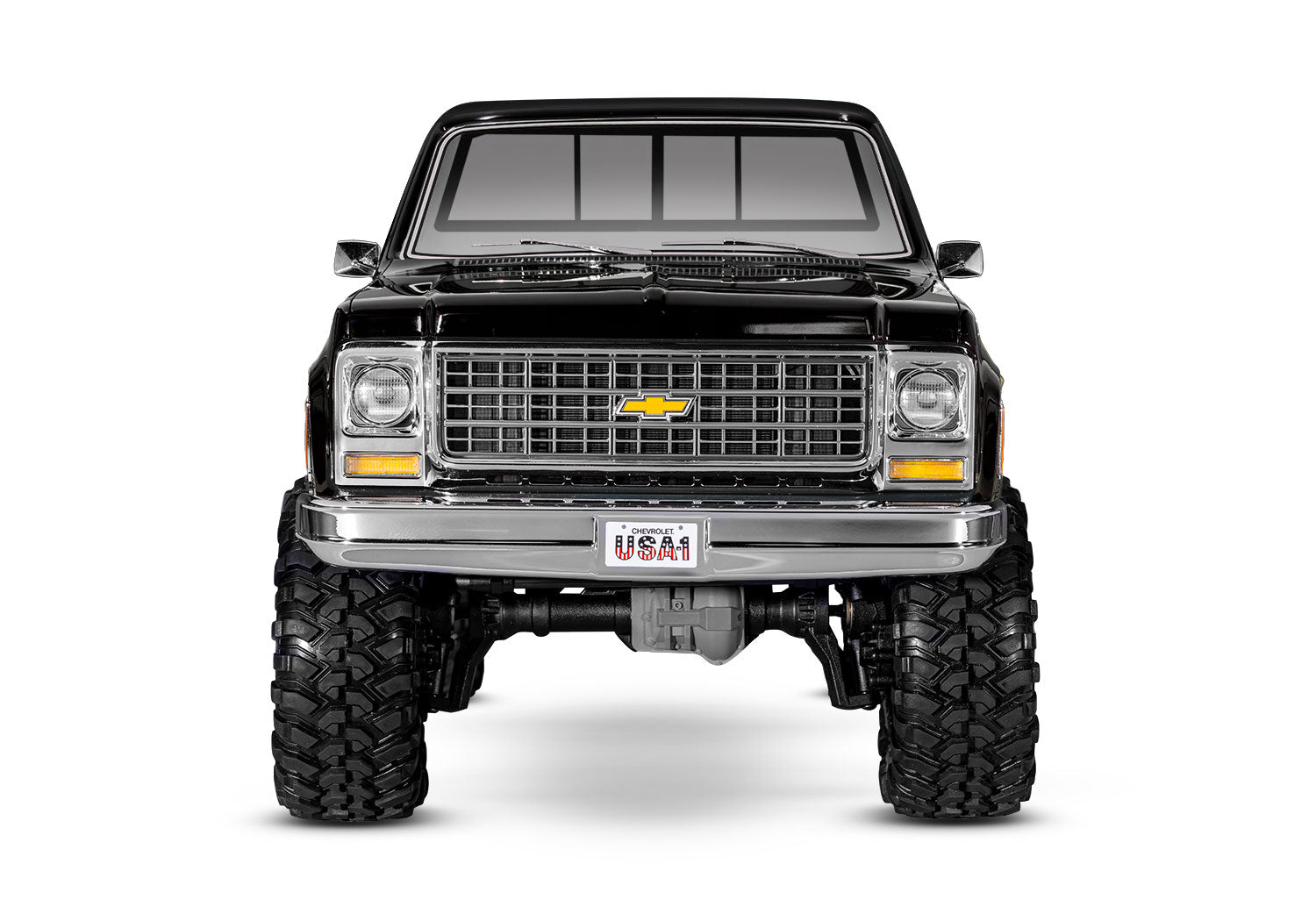

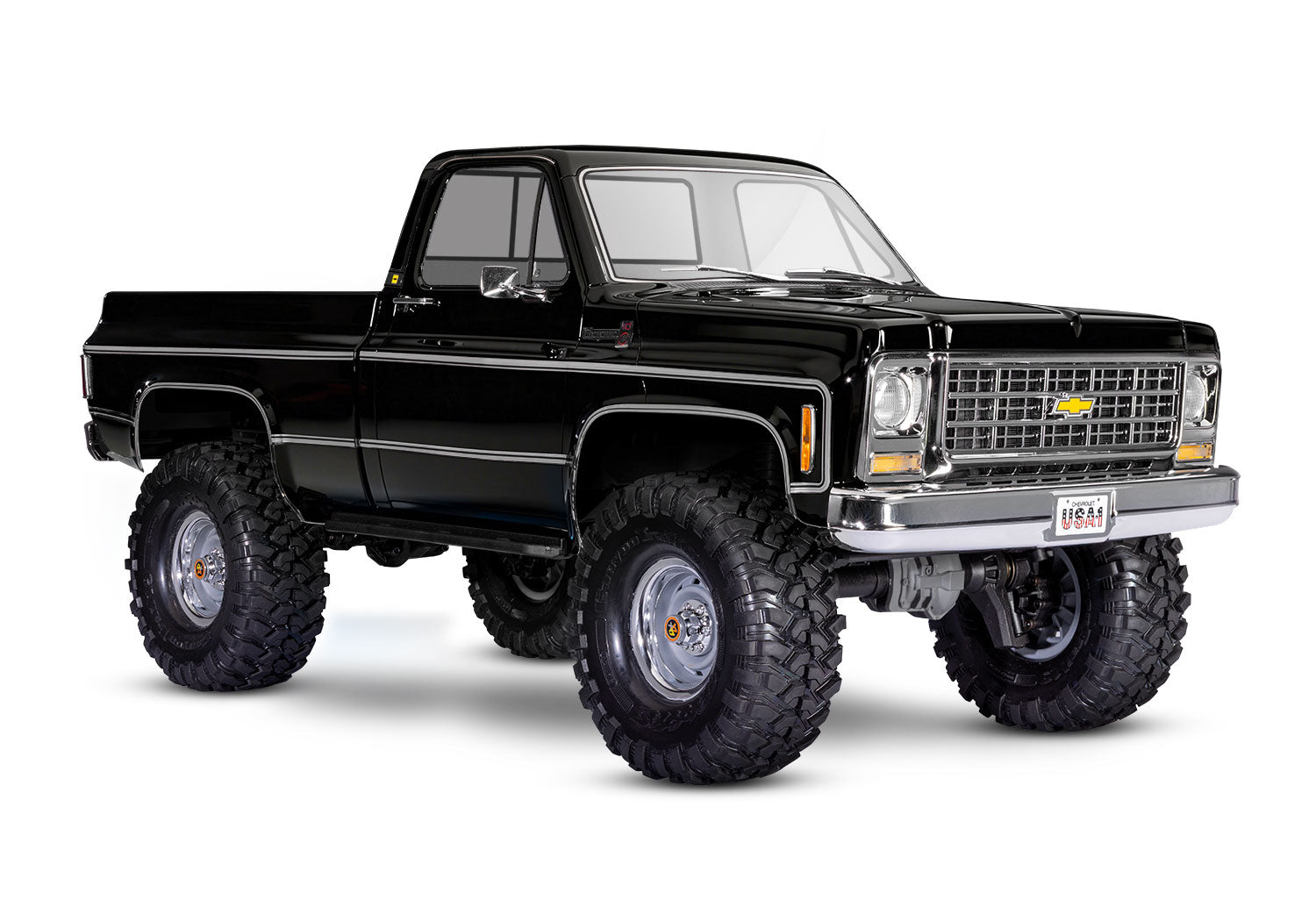

Officially Licensed Chevrolet^® K10 Body
- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights and tail lights
- Authentic decals
- Full Nylon composite wheel wells and floor pans

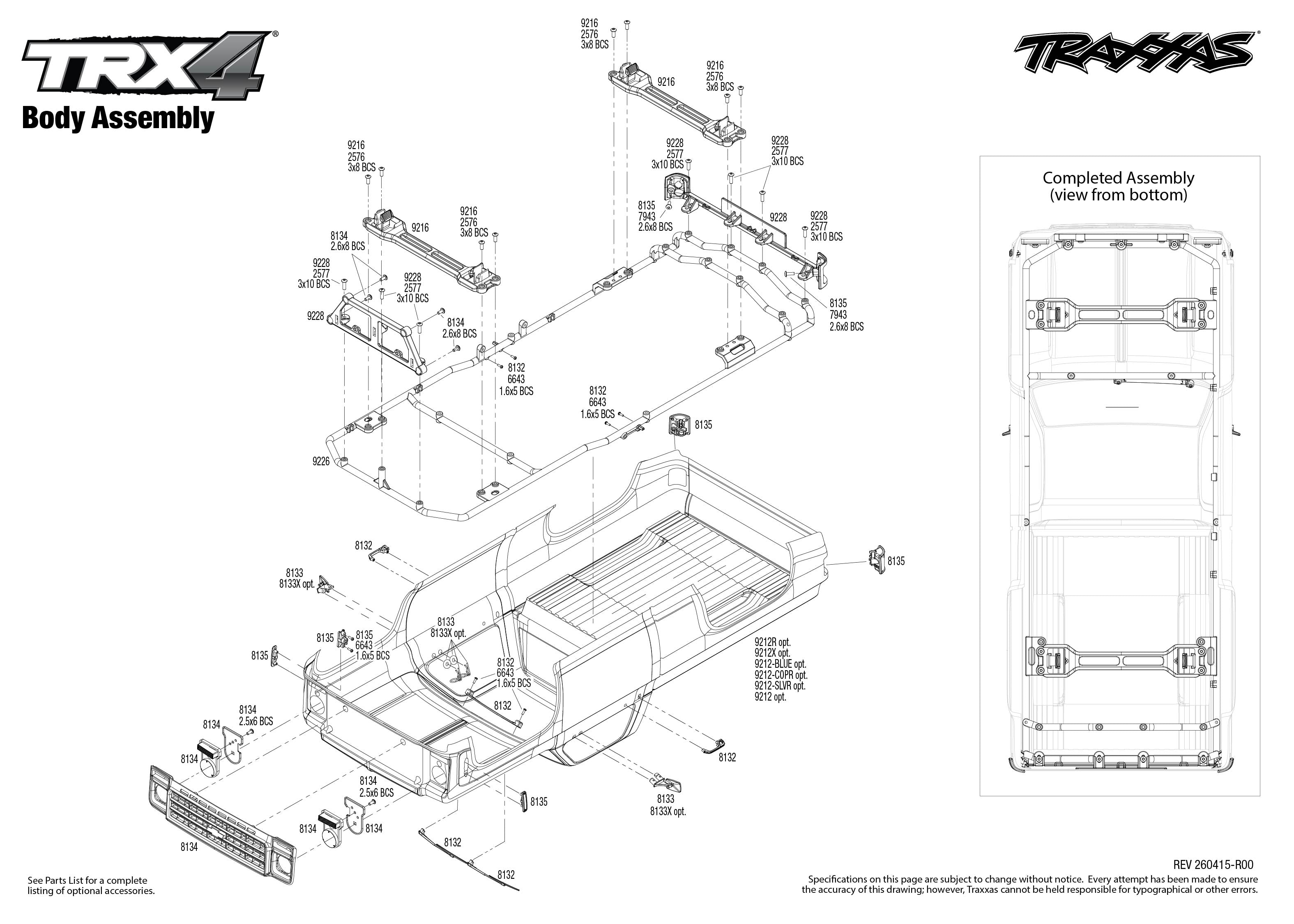

Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
  - Body details mount directly to internal frame
Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
Titan^® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh

TQ™ 2.4 GHz 2-Channel Radio
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the receiver dry

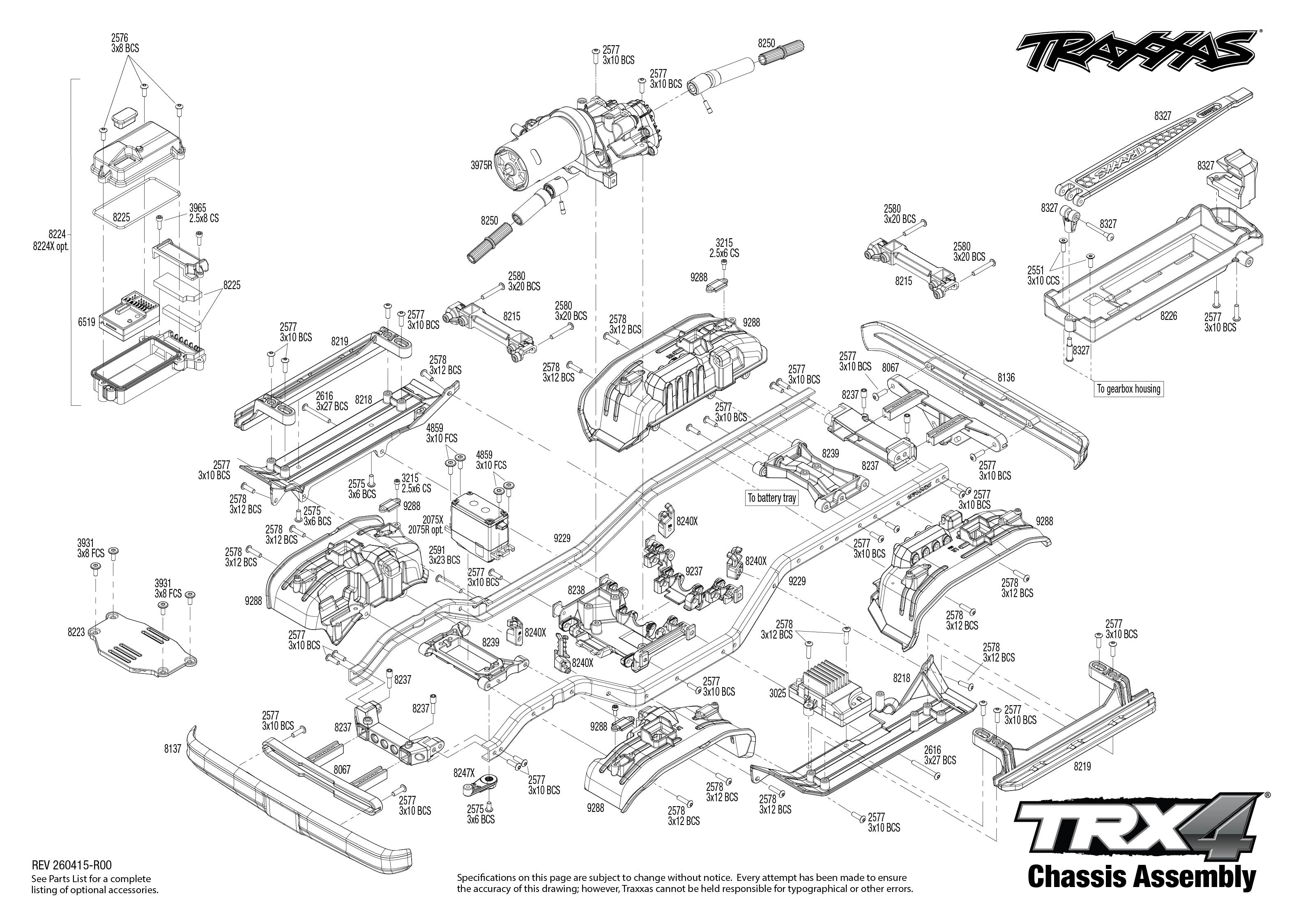

Extended Wheelbase Chassis
- Long 336 mm wheelbase for improved stability
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

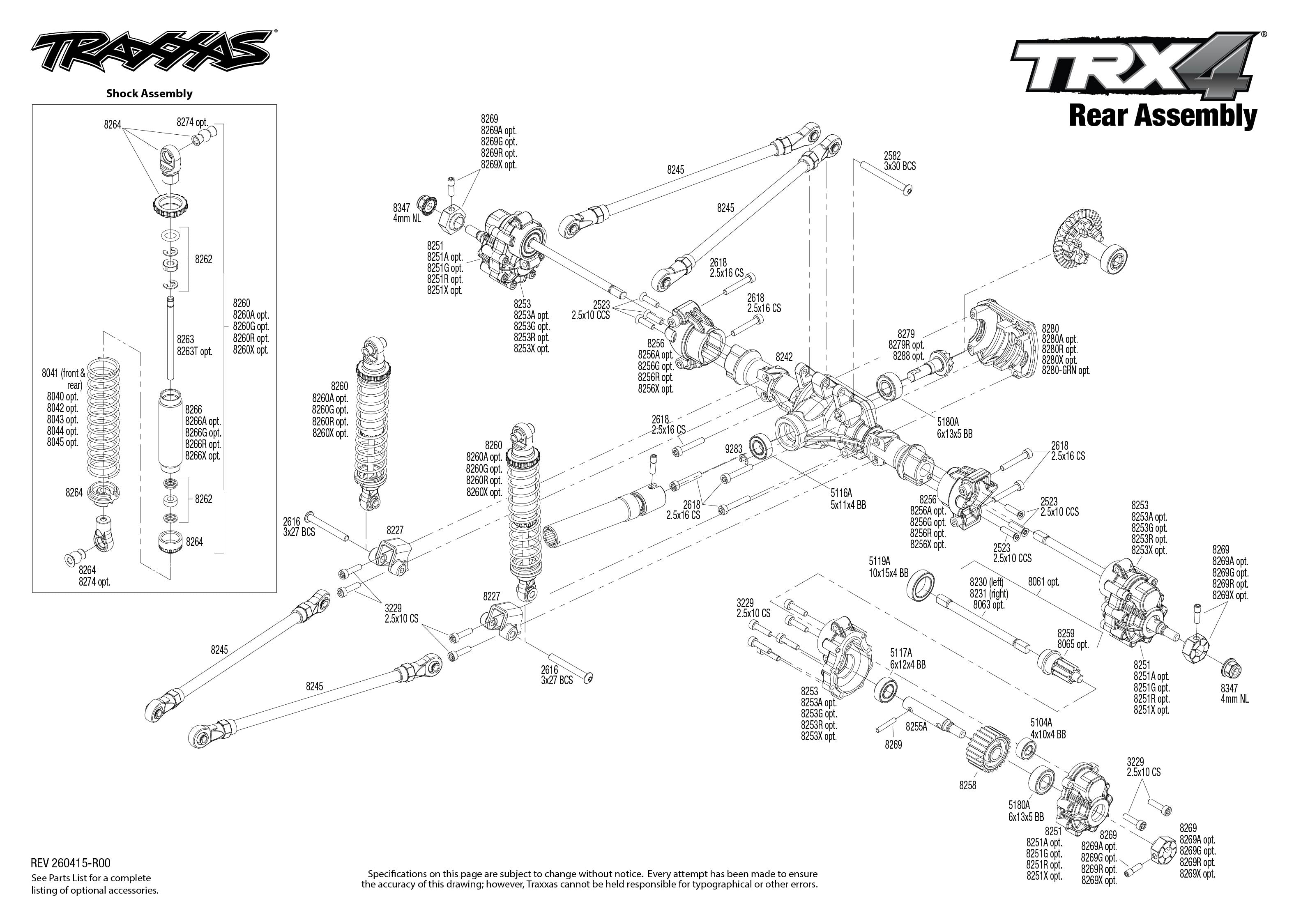

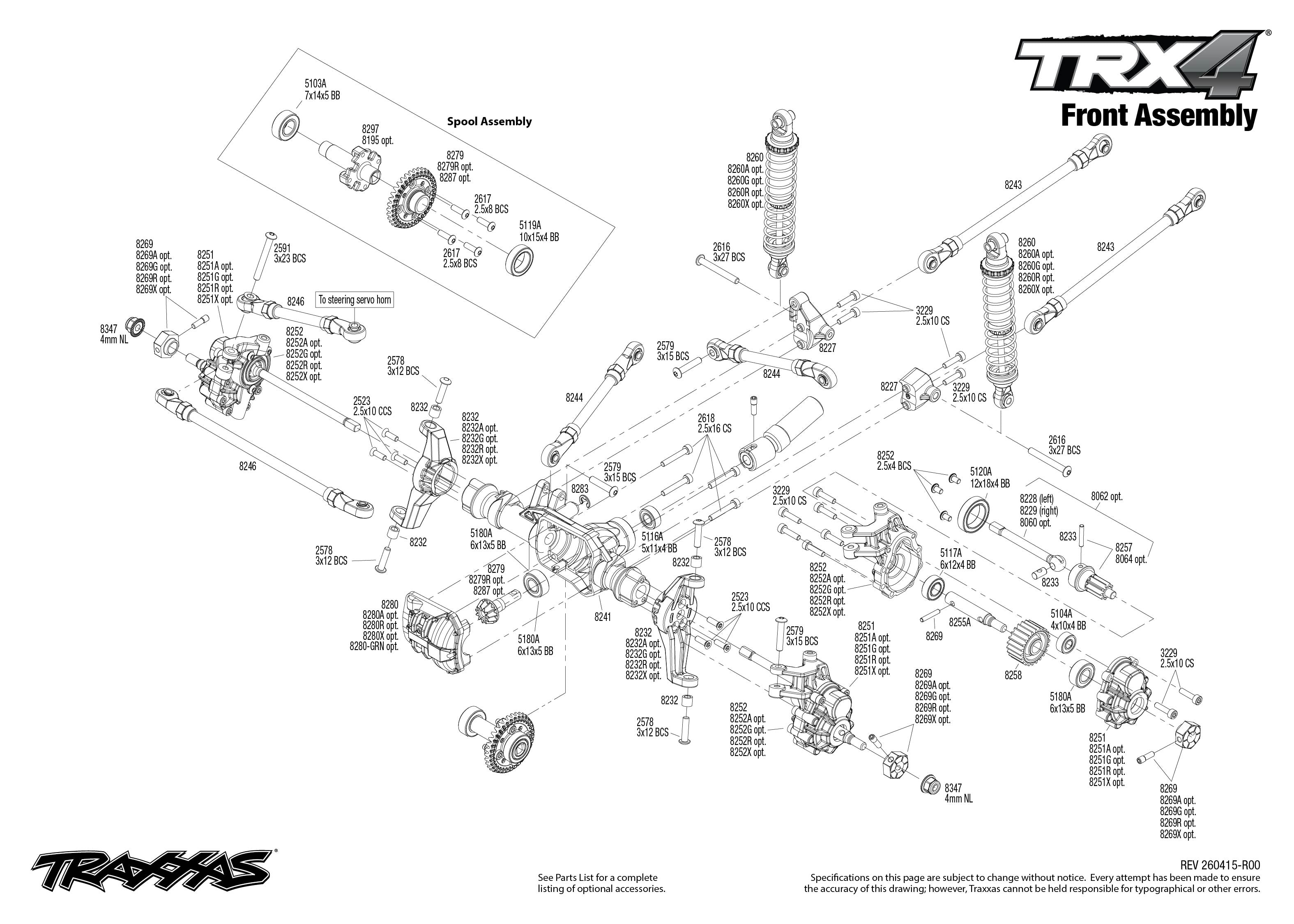

Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear axles
- Steel-gear transfer case

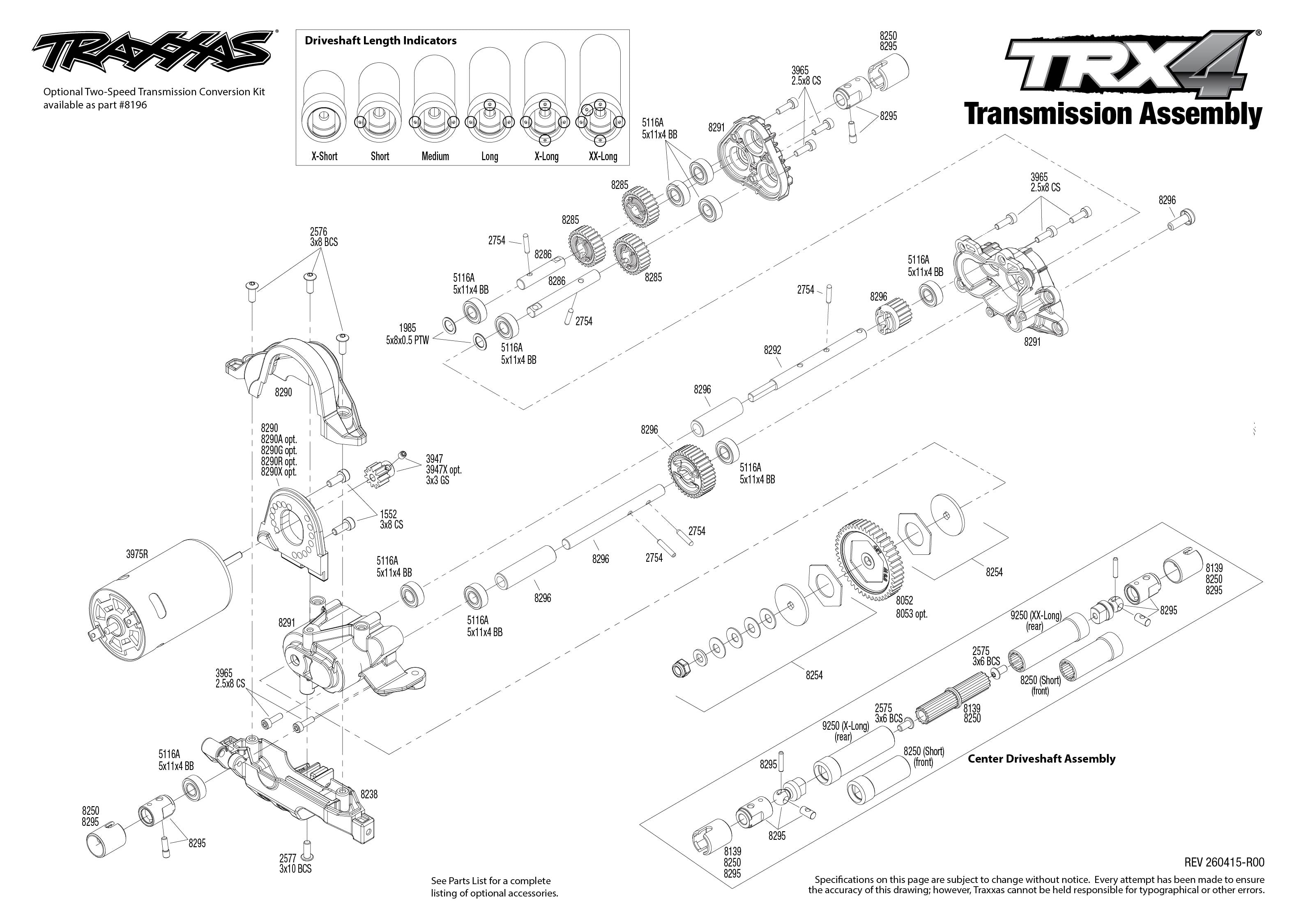

Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer

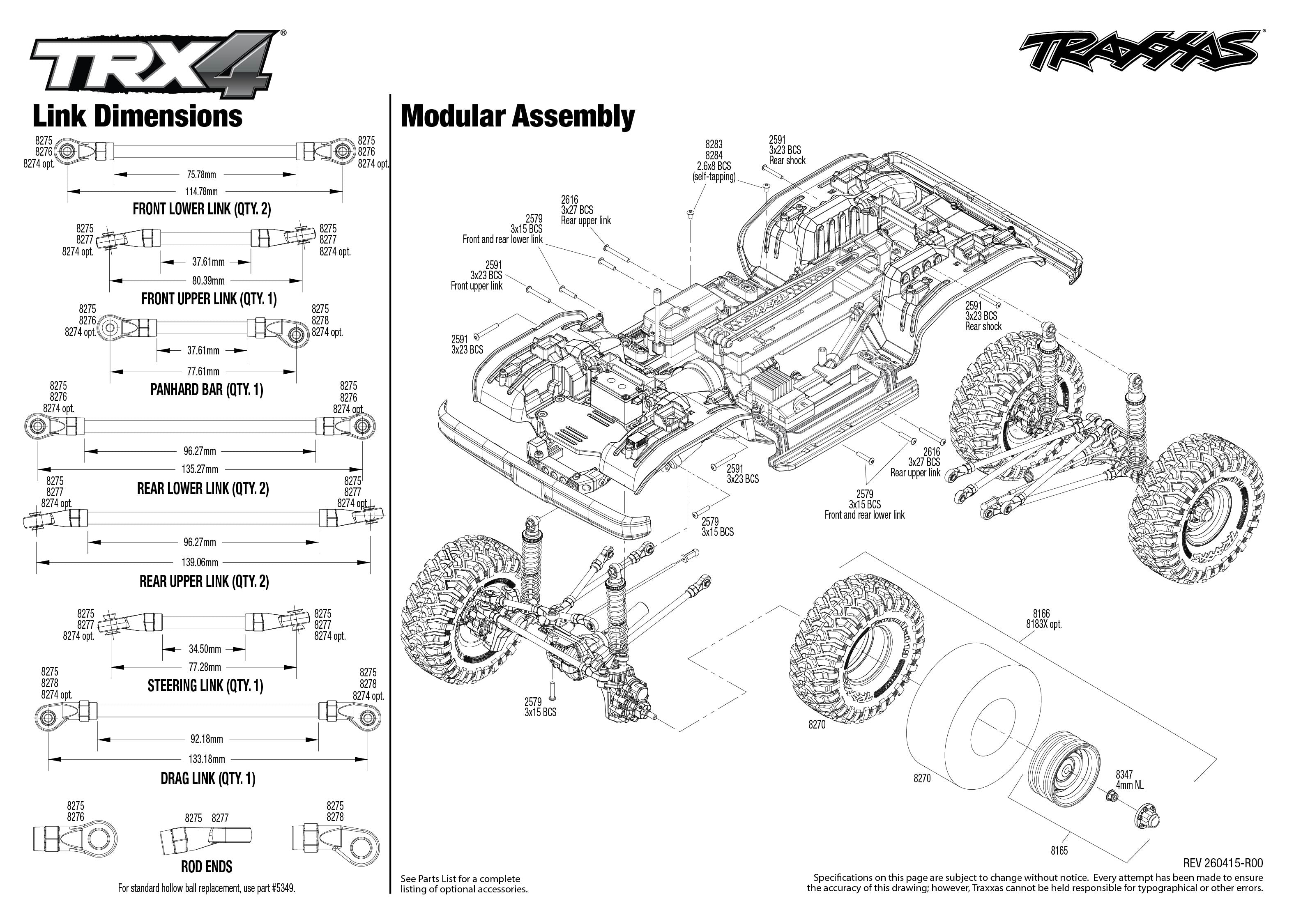

Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual x-ring shaft seals
Wheels and Tires
- 1.9″ chrome mag wheels wheels with hub inserts
- Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
- Trail-tuned S1 rubber compound
- 12 mm steel hex
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating,
Requires Battery and Charger (sold separately, Recommended Part #2992)
